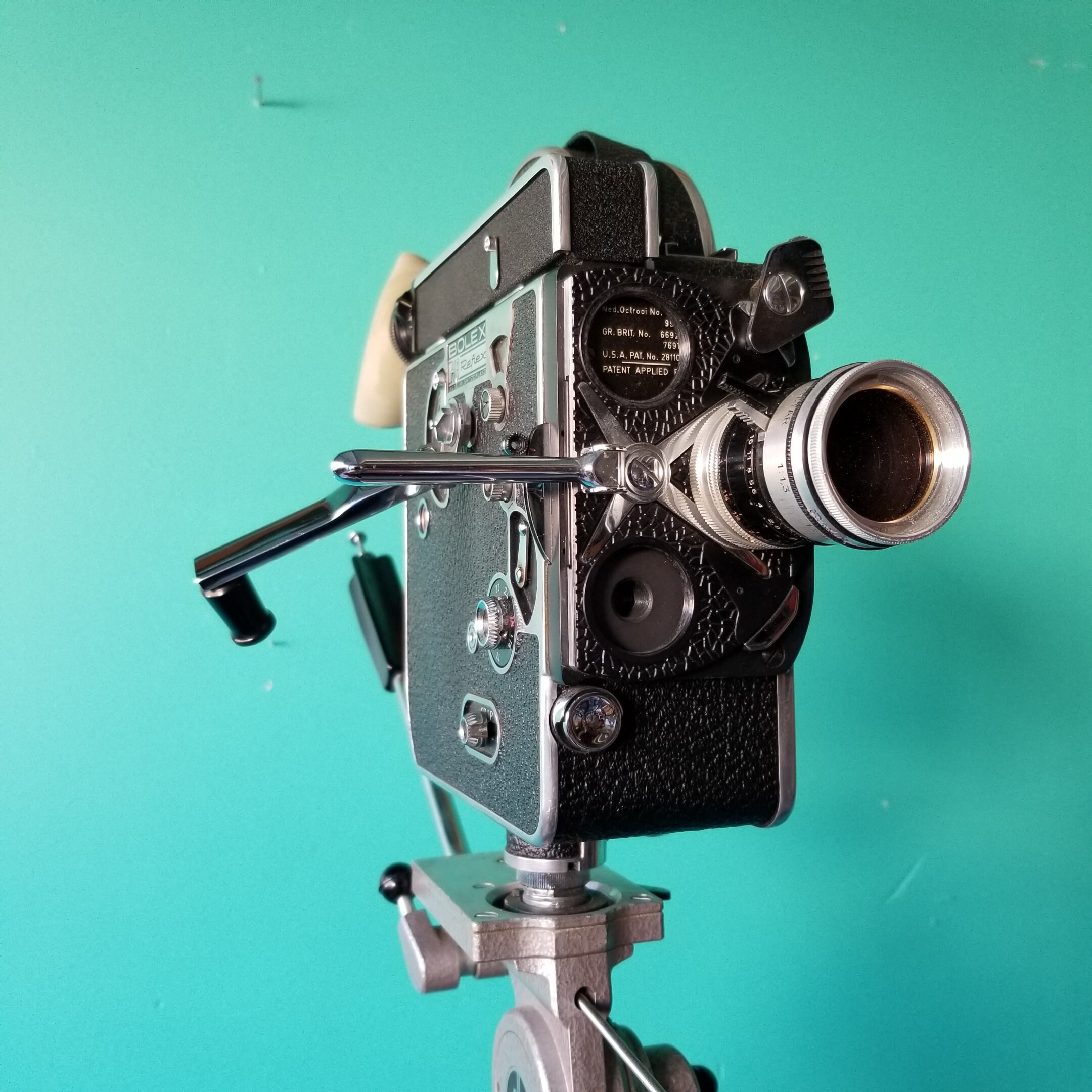

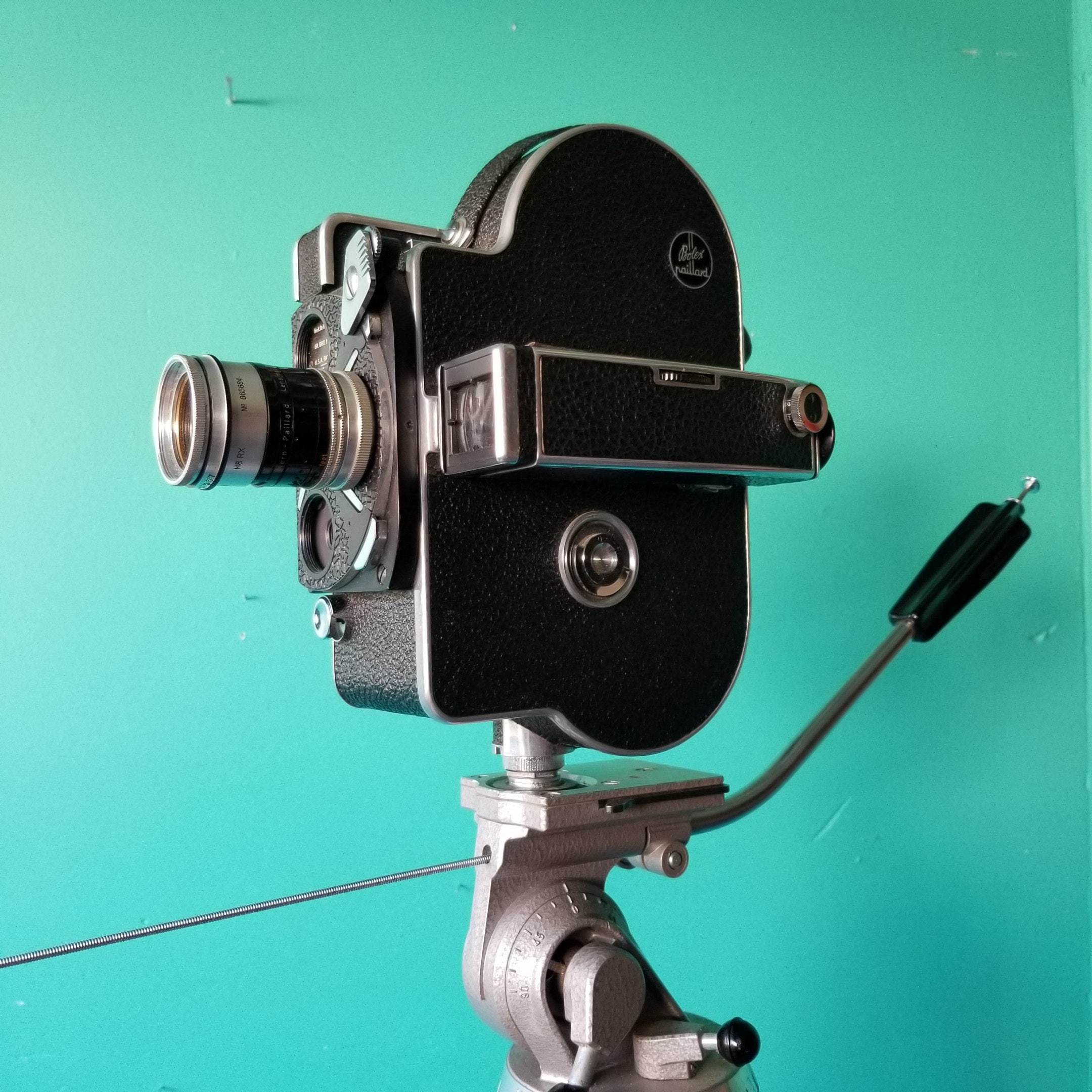

Paillard-Bolex H8 Rex Reflex 8mm Film Camera w/ Macro-Switar RX Lens & Bolex Tripod

The Bolex H-8 REX is one of the most respected 8mm motion picture cameras ever produced, widely used by independent, documentary, and experimental filmmakers for its precision engineering, compact size, and interchangeable lens system.

This reflex model features through-the-lens viewing using Bolex’s prism reflex system, allowing accurate focusing and framing directly through the taking lens. The adjustable eyepiece includes a rubber eyecup and diopter adjustment for user eyesight correction.

This camera is fitted with a 1953–54 Paillard-Bolex H8 RX Macro-Switar 1:1.3 12.5mm lens, serial number 865684.

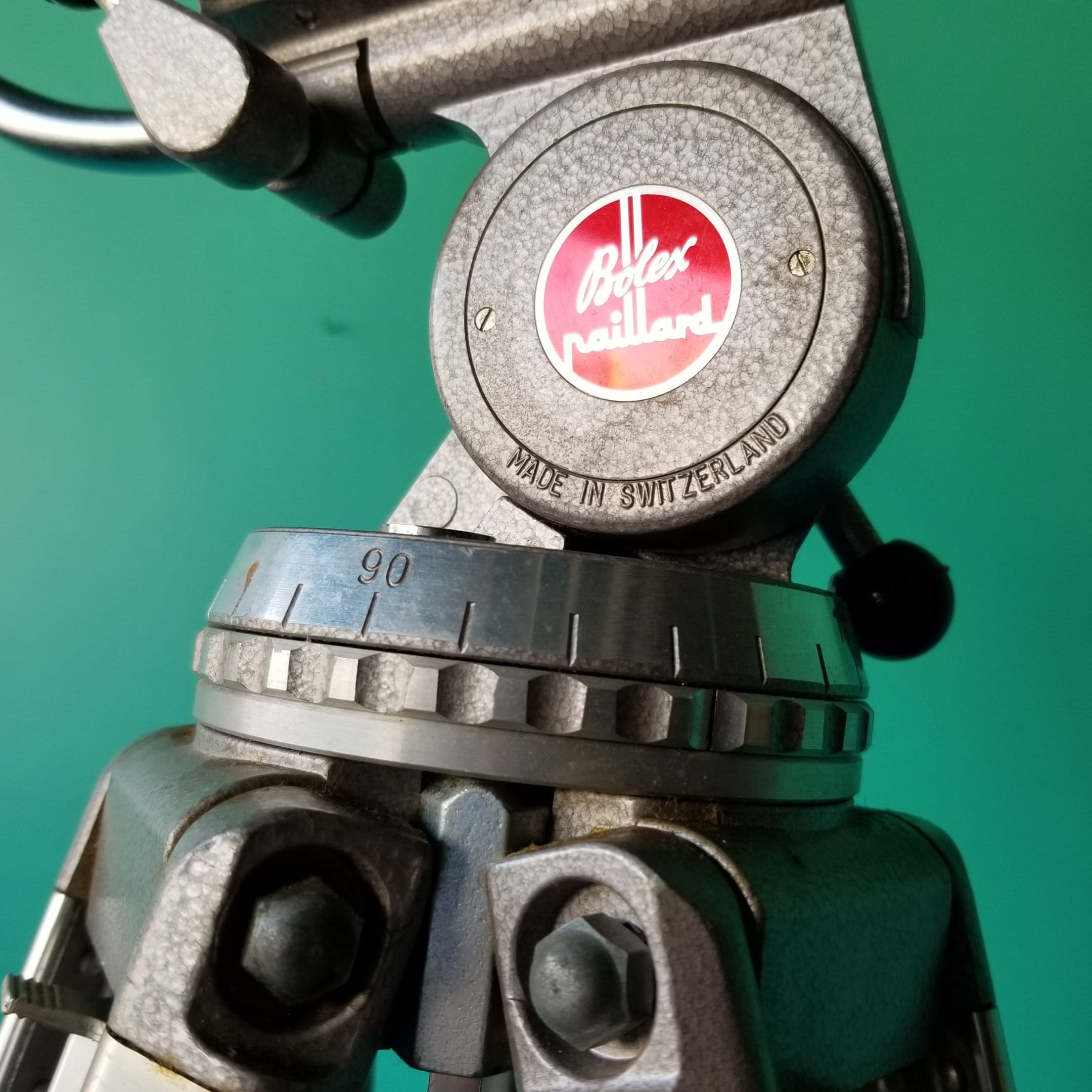

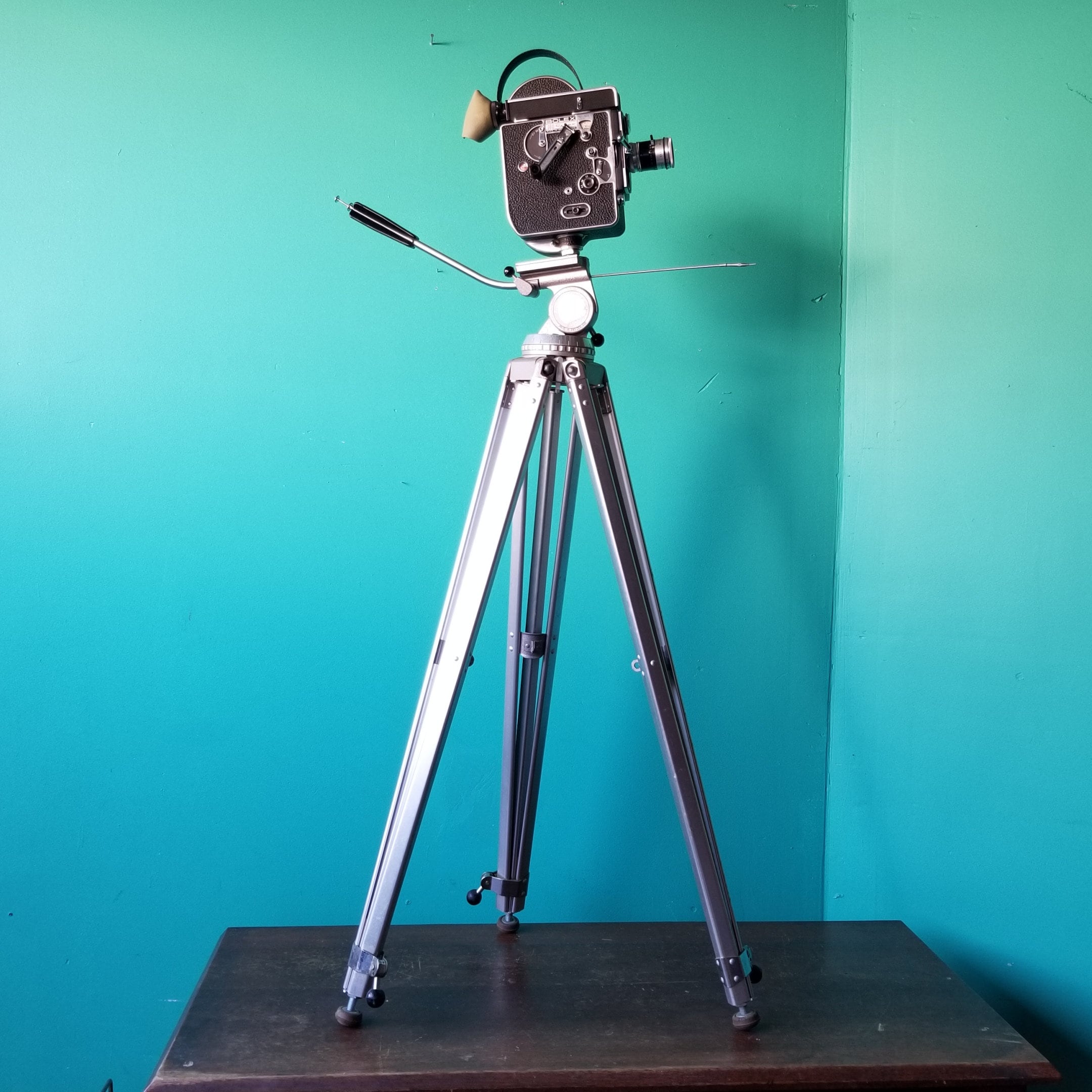

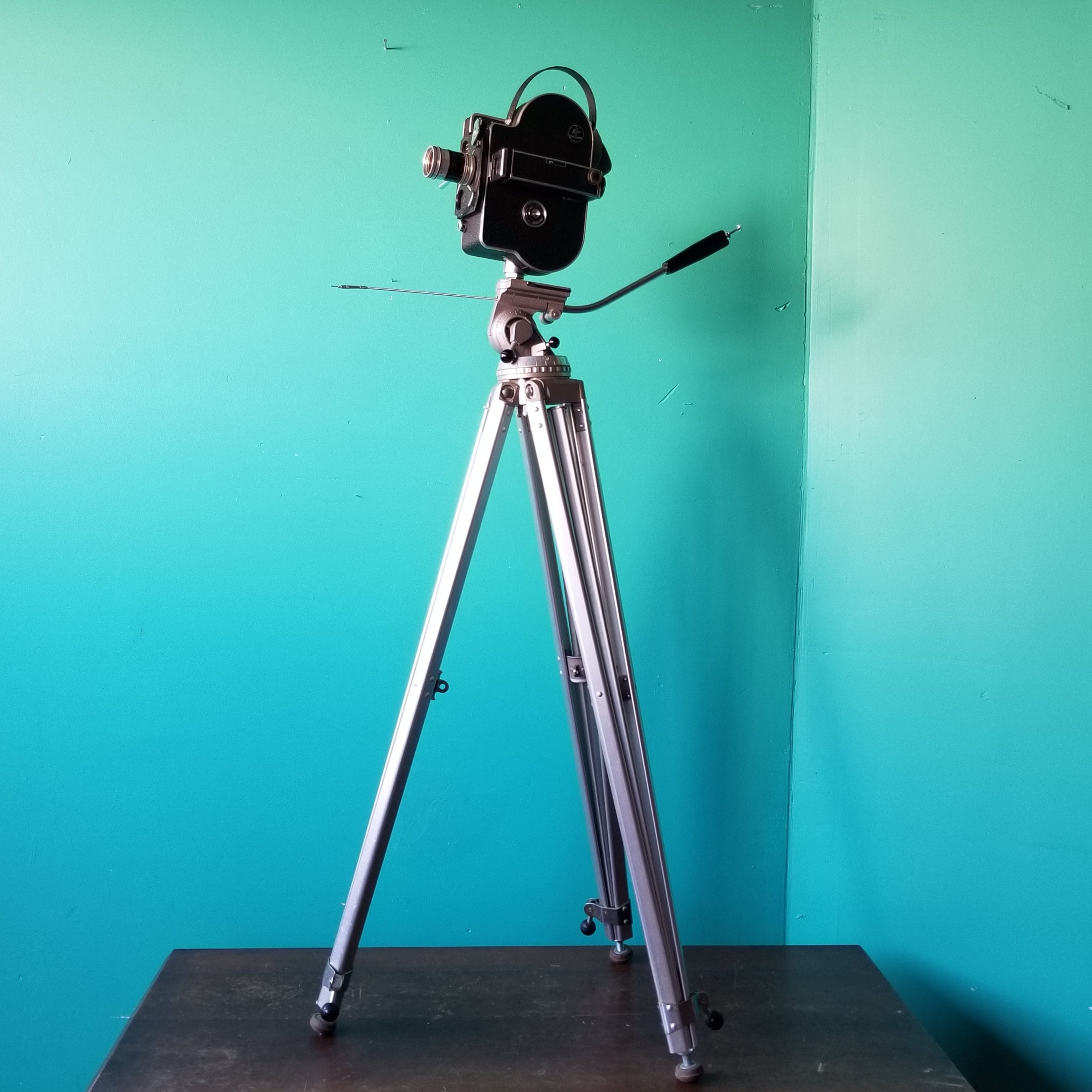

The camera appears to be in very clean cosmetic condition with light age-appropriate wear. The spring motor runs and mechanical functions appear operational, though the camera has not been film tested. The rubber eyecup shows some drying and bending from age. Included tripod shows normal wear including some stiffness in operation, minor nicks, and cracking to the rubber feet.

Specifications:

Model: Bolex H-8 REX
Format: Double-run 8mm motion picture film
Year: 1962
Body: Polished duraluminium covered in genuine Morocco leather with chrome-plated metal fittings
Dimensions: Approximately 8 1/2" × 6" × 3"
Weight: Approximately 5 1/2 lbs including accessories

Film Capacity:

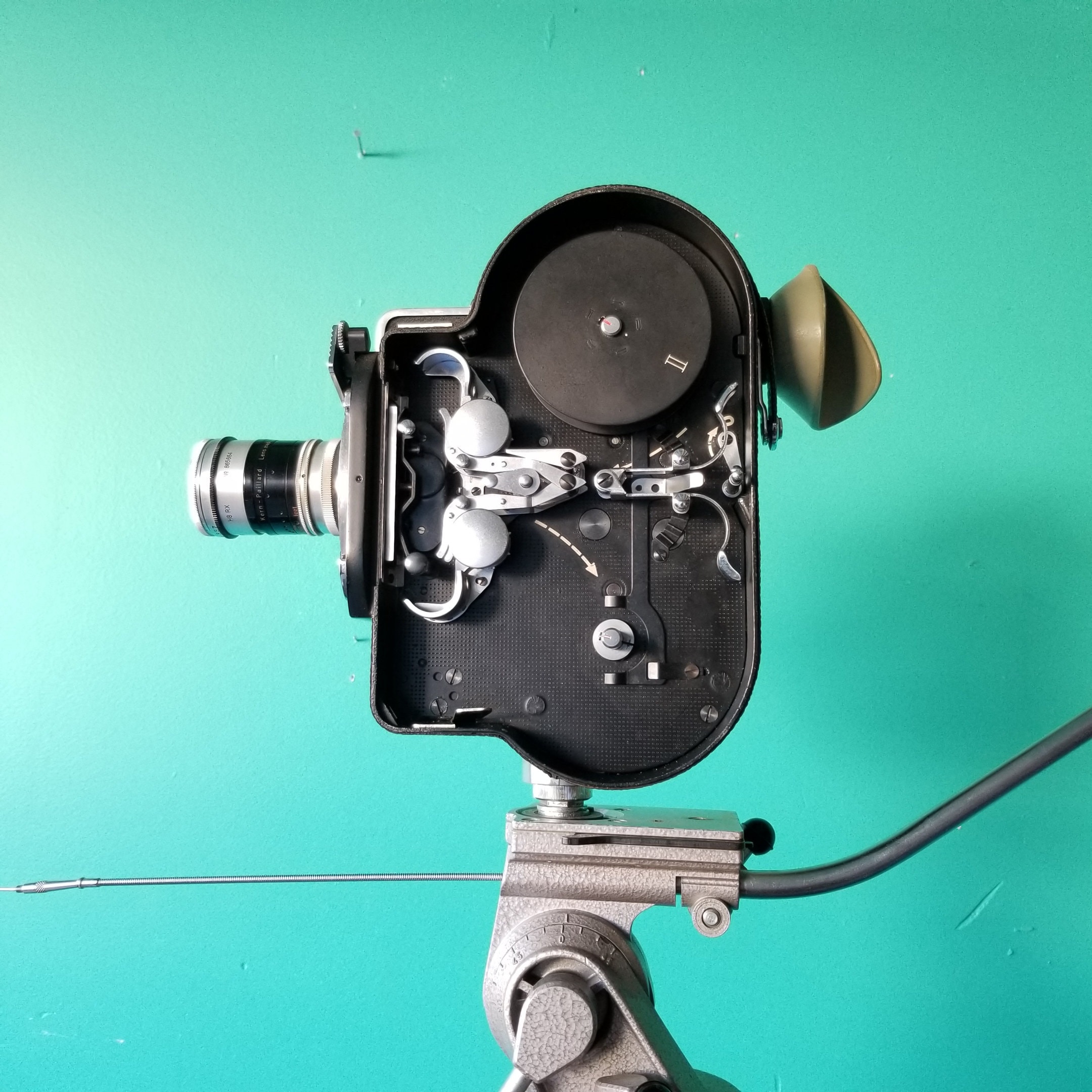

Accepts 25ft, 50ft, and 100ft daylight-loading double-run 8mm spools. Film is exposed on one half of the film width, then reversed and run through a second time before processing and splitting.

Lens Mount:
Three-position rotating turret accepting interchangeable RX-type C-mount lenses with turret lock.

Viewfinder:
Reflex through-the-lens viewing with ground glass focusing and adjustable diopter.

Motor:
Spring-driven constant-speed motor with folding winding handle and governor-controlled operation. Includes external drive capability for accessory motors.

Frame Rates:
12, 16, 18, 24, 32, and 64 frames per second.

Shutter:
Variable 133-degree shutter for exposure control and fade effects.

Exposure & Animation Features:
Single-frame capability for stop motion and time-lapse photography, manual rewind for superimposition and dissolve effects, and continuous or locked running modes.

Counters:
Footage and frame counters operate in both forward and reverse motion.

Tripod Mount:
Standard 3/8" threaded tripod socket.

Includes black leather carrying case and accessories.
